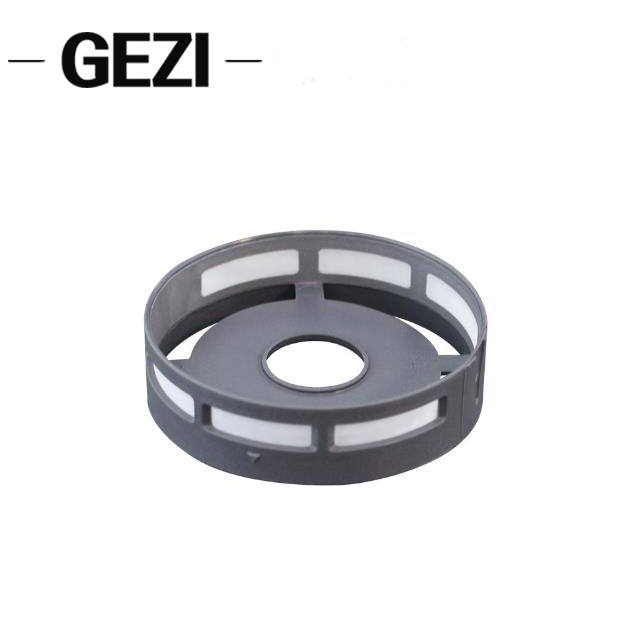

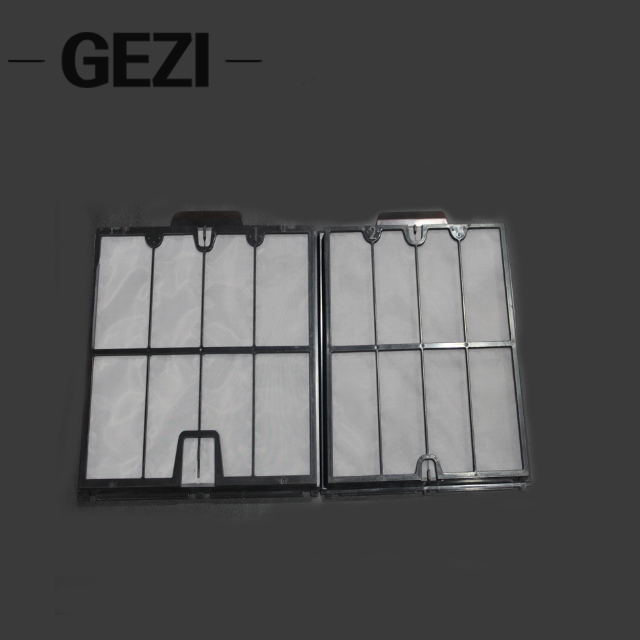

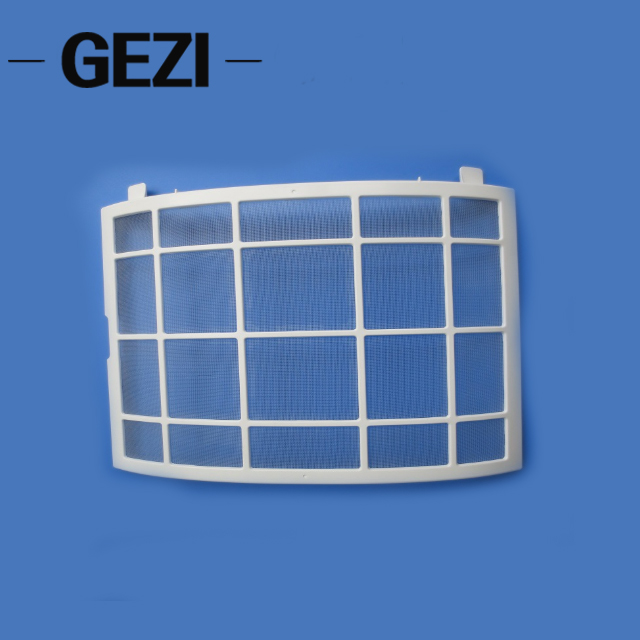

Vacuum cleaner filters

Vacuum cleaner filters: customized size and free samples.

100% nylon, 100% polyester, PP, PA66 filter mesh:

GEZI is one professional manufacturer& supplier of Nylon/ PA 66/ Polyester/ and PP filter mesh

in China and with all available items and size to our customers.

We also produce the finished gas or liquid filters, such as coffee filters, tea filters, yogurt filter mesh, automotive fuel pump filters or filter mesh, automotive oil and gas separation filters or filter mesh, vacuum cleaner filters, washing machine filters or filter mesh , air conditioning filters or filter mesh,

dishwasher filter, food industry filter, etc. We have formed a high - medium screen, multi - variety, multi - specification, multi - material product production series.

1. GEZI filter mesh main specification and advantages:

1) Mesh item: 10- 500mesh

2) Width: 100cm, 127cm, 140cm, 145cm, 160cm, 165cm, 180cm as normal or customized size.

3）High material quality.

4）Corrosion resistance, wear resistance.

5）Long use life, smooth surface, high strength, strong elastic and good resilience.

2. GEZI screen products are made of the corresponding material of raw material wire, through physical processing, the product itself does not have antibacterial, anti-UV, anti-aging, anti-static, fire and other functions, if you need these functions, please contact us directly, we’ll do the post-processing of the mesh, to add the anti-bacterial, anti-UV, anti-aging, anti-static fire and so on.

The functions mentioned in the above function description are only tips for customers, referring to the screen after the corresponding deep processing of the finished product can have the corresponding function, does not refer to the screen itself (that is, the primary mesh) with these functions.

2.Some of the screen products of our company use food-grade raw materials, which can meet the needs of food grade and FDA products for food processing, and some industrial uses do not need food grade, please contact us for consultation if you need.

3. The products of our company can also be used in medicine, as well as part of medical treatment and testing, but they cannot be used directly. Customers need to make corresponding treatment according to their own needs, and then use, such as high-temperature disinfection and sterilization.

4. For food-grade products of GEZI, the food grade certificate of the screen itself is provided. For accessories purchased from outside, the corresponding food grade certificate may not be provided.

GEZI is specialized in the production of various PP, PET polyester, nylon nylon high temperature air purifier, anti-haze window screen, fresh air system filter screen.

At present, we cooperate with various manufacturers to provide the first effect filter screen mesh, support screen and other products for the air purifier products of Xiaomi, Gree, Midea and other brands.

This product is cut by laser to the specifications and shapes required by customers. Customers can be directly used with ABS frame for molding, it’s convenient and durable.

Spec.	Mesh count	Wire diameter	Aperture	Opening rate	Thickness	Weight (g/sqm)
GZ-JPP5	13	500	1450	56	1000	271
GZ-JPP6	15	400	1290	58	840	208
GZ-JPP8	20	350	920	52	645	212
GZ-JPP9	24	200	860	67	370	160
GZ-JPP9	24	250	810	60	460	145
GZ-JPP9	24	300	760	53	570	148
GZ-JPP10	25	250	766	56	530	195
GZ-JPP12	30	300	550	41	495	162
GZ-JPP14	35	200	525	52	380	234
GZ-JPP16	40	200	435	46	400	139
GZ-JPP16	50	250	260	36	420	217
GZ-JPP17	42	200	405	44	380	198
GZ-JPP18	45	220	340	37	400	180
GZ-JPP20	50	200	308	36	375	173
GZ-JPP24	60	150	270	41	305	117
GZ-JPP28	70	150	213	34	278	87
GZ-JPP30	76	120	214	41	230	94

Spec.	Mesh count	Wire diameter	Aperture	Opening rate	Thickness	Weight (g/sqm)
GZ-JPP32	80	100	217	46	240	69
GZ-JPP36	90	100	182	41	195	78
GZ-JPP40	100	100	154	36	192	87
GZ-JPP44	110	100	131	31	175	62
GZ-JPP48	120	80	132	38	150	65
GZ-JPP56	142	60	119	44	110	44
GZ-JPP59	150	60	110	42	98	46
GZ-JPP64	163	60	96	38	120	51
GZ-JPP72	183	50	89	41	90	38
GZ-JPP80	203	50	75	36	93	43
GZ-JPP88	224	40	74	42	65	32
GZ-JPP96	244	40	64	38	76	34
GZ-JPP100	254	40	60	36	78	35
GZ-JPP104	264	40	56	34	79	36
GZ-JPP120	305	40	43	27	80	42
GZ-JPP130	330	40	37	23	75	44
Remark: The above datails are theoretic, please be reference.

Vacuum cleaner filters play a crucial role in maintaining the performance and efficiency of vacuum cleaners. They are designed to capture and trap various particles and debris that are picked up during the cleaning process. Here are some applications of vacuum cleaner filters:

1.Dust and Dirt Filtration: The primary purpose of vacuum cleaner filters is to capture dust, dirt, and other small particles. They prevent these particles from circulating back into the air or being released back into the environment. By trapping these contaminants, filters help improve indoor air quality and reduce allergies and respiratory issues.

2.Allergen and Asthma Control: Vacuum cleaner filters are particularly useful for individuals with allergies or asthma. They can effectively capture allergens such as pollen, pet dander, dust mites, and mold spores, preventing them from being re-circulated in the air. This helps reduce the risk of allergic reactions and asthma attacks.

3.Pet Hair and Dander Removal: For pet owners, vacuum cleaner filters are essential in tackling pet hair and dander. These filters capture and retain pet fur and dander, reducing allergens and keeping the home cleaner.

4.Fine Particle Filtration: Some vacuum cleaner filters, such as HEPA (High-Efficiency Particulate Air) filters, are designed to capture extremely fine particles, including microscopic allergens, bacteria, and viruses. HEPA filters are highly efficient and can remove particles as small as 0.3 microns with a high degree of effectiveness.

5.Odor Control: Certain vacuum cleaner filters incorporate activated charcoal or carbon filters. These filters help eliminate unpleasant odors by trapping odor-causing molecules, leaving the air fresh and clean.

6.Indoor Environment Enhancement: Vacuum cleaner filters contribute to creating a healthier and cleaner indoor environment by capturing pollutants and contaminants. They are especially beneficial in homes with children, the elderly, or individuals with respiratory conditions.

7.Maintenance of Vacuum Cleaner Performance: Clean filters are essential for maintaining the overall performance and suction power of a vacuum cleaner. Clogged or dirty filters can restrict airflow and reduce suction efficiency. Regularly cleaning or replacing filters ensures optimal performance and extends the lifespan of the vacuum cleaner.

In summary, vacuum cleaner filters are vital components that improve indoor air quality, capture allergens, remove pet hair, filter fine particles, control odors, and enhance the overall cleaning performance of vacuum cleaners.
