Air purifier primary effect filter screen mesh, support mesh

Material: PP, PET and Nylon.

Mesh Count: 30, 40, 50, 60 mesh.

Molding function: water filteration, air purifier filter mesh, pharmaceutical filter element etc.


Filter Mesh specification sheet.pdf


Material: PP, PET and Nylon.

Mesh Count: 30, 40, 50, 60 mesh.

Molding function: water filteration, air purifier filter mesh, pharmaceutical filter element etc.

Size:

1) Cut the support screen mesh into the width required by the customer, roll for delivery, customers according to their own needs in use to cut the length finally.

2) Cut the filter screen mesh into mesh pieces, customer could directly use.


100% nylon, 100% polyester, PP, PA66 filter mesh:

GEZI is one professional manufacturer& supplier of Nylon/ PA 66/ Polyester/ and PP filter mesh

in China and with all available items and size to our customers.

We also produce the finished gas or liquid filters, such as coffee filters, tea filters, yogurt filter mesh, automotive fuel pump filters or filter mesh, automotive oil and gas separation filters or filter mesh, vacuum cleaner filters, washing machine filters or filter mesh , air conditioning filters or filter mesh,

dishwasher filter, food industry filter, etc. We have formed a high - medium screen, multi - variety, multi - specification, multi - material product production series.



1. GEZI filter mesh main specification and advantages:

1) Mesh item: 10- 500mesh

2) Width: 100cm, 127cm, 140cm, 145cm, 160cm, 165cm, 180cm as normal or customized size.

3High material quality.

4Corrosion resistance, wear resistance.

5Long use life, smooth surface, high strength, strong elastic and good resilience.



2. GEZI screen products are made of the corresponding material of raw material wire, through physical processing, the product itself does not have antibacterial, anti-UV, anti-aging, anti-static, fire and other functions, if you need these functions, please contact us directly, we’ll do the post-processing of the mesh, to add the anti-bacterial, anti-UV, anti-aging, anti-static fire and so on.

The functions mentioned in the above function description are only tips for customers, referring to the screen after the corresponding deep processing of the finished product can have the corresponding function, does not refer to the screen itself (that is, the primary mesh) with these functions.

2.Some of the screen products of our company use food-grade raw materials, which can meet the needs of food grade and FDA products for food processing, and some industrial uses do not need food grade, please contact us for consultation if you need.

3. The products of our company can also be used in medicine, as well as part of medical treatment and testing, but they cannot be used directly. Customers need to make corresponding treatment according to their own needs, and then use, such as high-temperature disinfection and sterilization.

4. For food-grade products of GEZI, the food grade certificate of the screen itself is provided. For accessories purchased from outside, the corresponding food grade certificate may not be provided.



GEZI is specialized in the production of various PP, PET polyester, nylon nylon high temperature air purifier, anti-haze window screen, fresh air system filter screen.

At present, we cooperate with various manufacturers to provide the first effect filter screen mesh, support screen and other products for the air purifier products of Xiaomi, Gree, Midea and other brands.

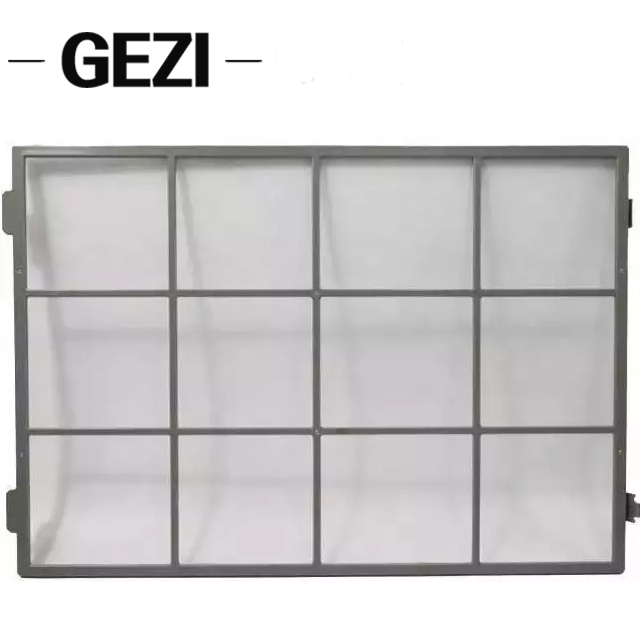

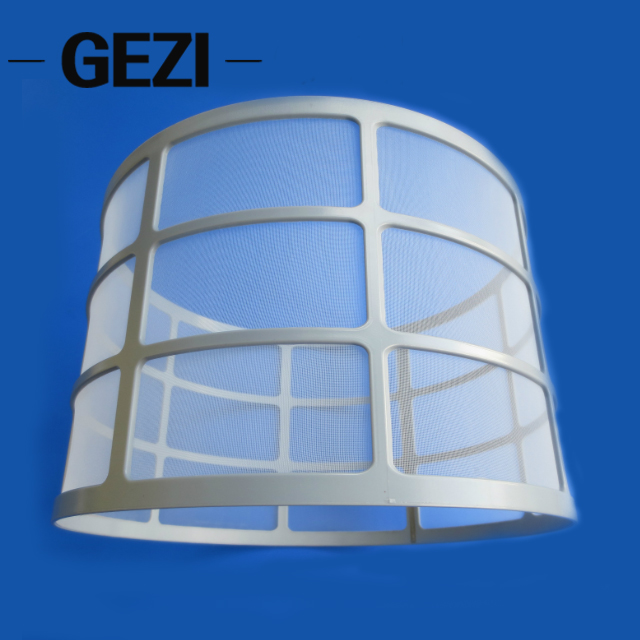

This product is cut by laser to the specifications and shapes required by customers. Customers can be directly used with ABS frame for molding, it’s convenient and durable.


Spec.

Mesh count

Wire   diameter

Aperture

Opening rate

Thickness

Weight (g/sqm)

GZ-JPP5

13

500

1450

56

1000

271

GZ-JPP6

15

400

1290

58

840

208

GZ-JPP8

20

350

920

52

645

212

GZ-JPP9

24

200

860

67

370

      160

GZ-JPP9

24

250

810

60

460

145

GZ-JPP9

24

300

760

53

570

148

GZ-JPP10

25

250

766

56

530

195

GZ-JPP12

30

300

550

41

495

162

GZ-JPP14

35

200

525

52

380

234

GZ-JPP16

40

200

435

46

400

139

GZ-JPP16

50

250

260

36

420

217

GZ-JPP17

42

200

405

44

380

198

GZ-JPP18

45

220

340

37

400

180

GZ-JPP20

50

200

308

36

375

173

GZ-JPP24

60

150

270

41

305

117

GZ-JPP28

70

150

213

34

278

87

GZ-JPP30

76

120

214

41

230

94

Spec.

Mesh count

Wire diameter

Aperture

Opening rate

Thickness

Weight (g/sqm)

GZ-JPP32

80

100

217

46

240

69

GZ-JPP36

90

100

182

41

195

78

GZ-JPP40

100

100

154

36

192

87

GZ-JPP44

110

100

131

31

175

62

GZ-JPP48

120

80

132

38

150

65

GZ-JPP56

142

60

119

44

110

44

GZ-JPP59

150

60

110

42

98

46

GZ-JPP64

163

60

96

38

120

51

GZ-JPP72

183

50

89

41

90

38

GZ-JPP80

203

50

75

36

93

43

GZ-JPP88

224

40

74

42

65

32

GZ-JPP96

244

40

64

38

76

34

GZ-JPP100

254

40

60

36

78

35

GZ-JPP104

264

40

56

34

79

36

GZ-JPP120

305

40

43

27

80

42

GZ-JPP130

330

40

37

23

75

44

Remark: The above datails are   theoretic, please be reference.


The primary effect filter screen mesh, also known as the support mesh, is an essential component of air purifiers. It serves several applications in the filtration process. Here are some of the primary applications of the support mesh:

1.Structural Support: The primary function of the support mesh is to provide structural integrity to the air filter. It acts as a backbone or frame that holds the other filter layers in place. The mesh is typically made of a sturdy material like metal or plastic to withstand the airflow and prevent collapse of the filter media.

2.Protection of Inner Layers: The support mesh acts as a protective layer for the inner filter media. It prevents the filter media from being damaged or punctured by large particles or debris that might be present in the air.

3.Even Air Distribution: The mesh helps in ensuring even distribution of air across the filter. It helps to prevent channeling or bypassing of air, where the air may flow through certain areas of the filter without passing through the entire filter media. This allows for more effective filtration of pollutants.

4.Enhanced Filter Efficiency: By providing support and preventing the filter media from sagging or becoming distorted, the support mesh helps to maintain optimal filtration efficiency. It ensures that the filter media remains evenly spread out, allowing for better contact between the air and the filter material.

5.Easy Handling and Installation: The support mesh also aids in the handling and installation of the air filter. It provides a rigid structure that makes it easier to handle and insert the filter into the air purifier housing.

Overall, the primary effect filter screen mesh, or support mesh, plays a crucial role in maintaining the structural integrity, protecting the filter media, and enhancing the filtration efficiency of air purifiers.
