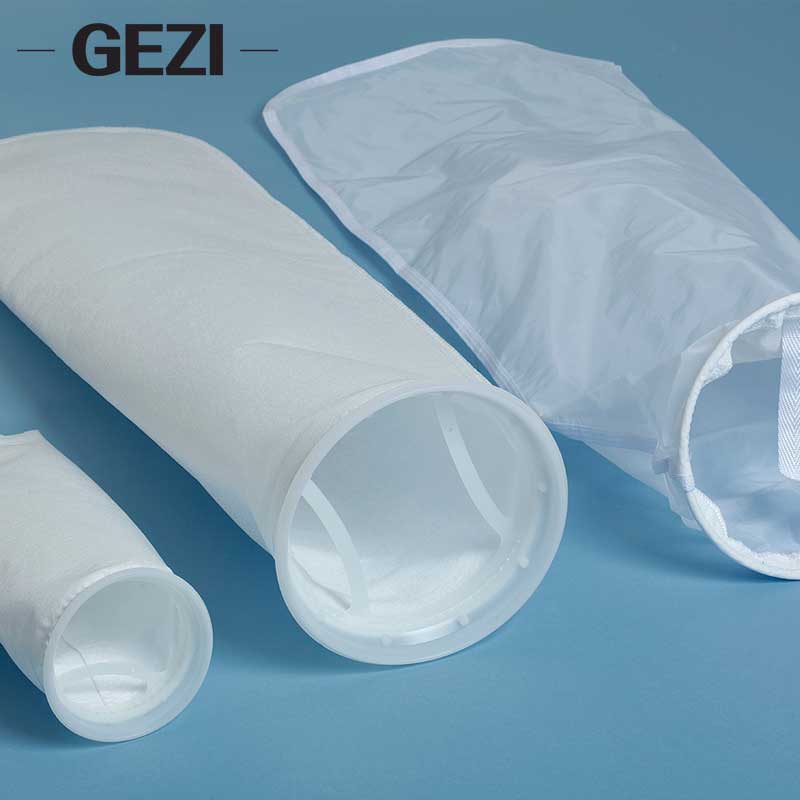

PP PE Nylon PTFE Filter Bag
PP Filter Bag:
Filter Media Material: Polypropylene (Glazed), Polyester (Singed)
Retainer Material: Universal Polypropylene Collar Steel Ring( Stainless Steel 316 / Zinc Coated Steel Ring )
Retention Rating: 1, 3, 5, 10, 25, 50, 75, 100, 200 μm others on request
Bag Size (inch): Size1 (7"x16"L), Size 2 (7"x32"L),Size 3 (4"x8"L), Size 4 (4"x14"L),Other Sizes ( 4″ x 10″, 4″ X 20″ , 4″ x 24″ ),Custom Sizes Available on Request.
Bag Type: Fully Welded ( Bottom, Seam, Collar ),Sewn Collars + Welded Seam and Bottom ( for Steel Rings )
PE Filter Bag:
Sewing Method: ultrasonic welding or stitching
Seal Ring: PE (SDS, G ring, F ring and W ring, etc.), galvanized steel ring or stainless steel ring.
Seal Ring Connection: ultrasonic welding or stitching
Filter Rating: 0.5-300 μm
Efficiency: Relative accuracy, 85% single filtration efficiency
Surface Treatment: Surface smooth treatment to prevent free fibers and solvents
Material Grade: Free of silicon and other types of contaminants.
Replacement: 0.10 MPa replacement differential pressure, not greater than 0.18 MPa.
Working Temperature: < 150 °C
pH Range : 5-8
Nylon Filter Bag:
Material: Monofilament nylon.
Mesh Size: 5, 10, 25, 50, 100, 150, 200, 400, 500, 600, 800µm or Customized.
Generic specifications: 12″x12″, 11″x16″,10″x12″,26″x22″or customized.
Bag Top Type: Plastic ring top, Metal ring top, Drawstring top.
Maximum operating temperature: 90ºC.
PTFE Filter Bag:
Size: Customized.
Material: PTFE Needle Punched Felt.
Bag Shape: Round or Pleat.
Post-treatment: Calendering, heat setting, singeing.
Application: Dust, gas, liquid filtration.
